MXi1000

Scalable linear automation with four-directional loading for high-production and high-mix shops alike.

Made in North America

Key Features

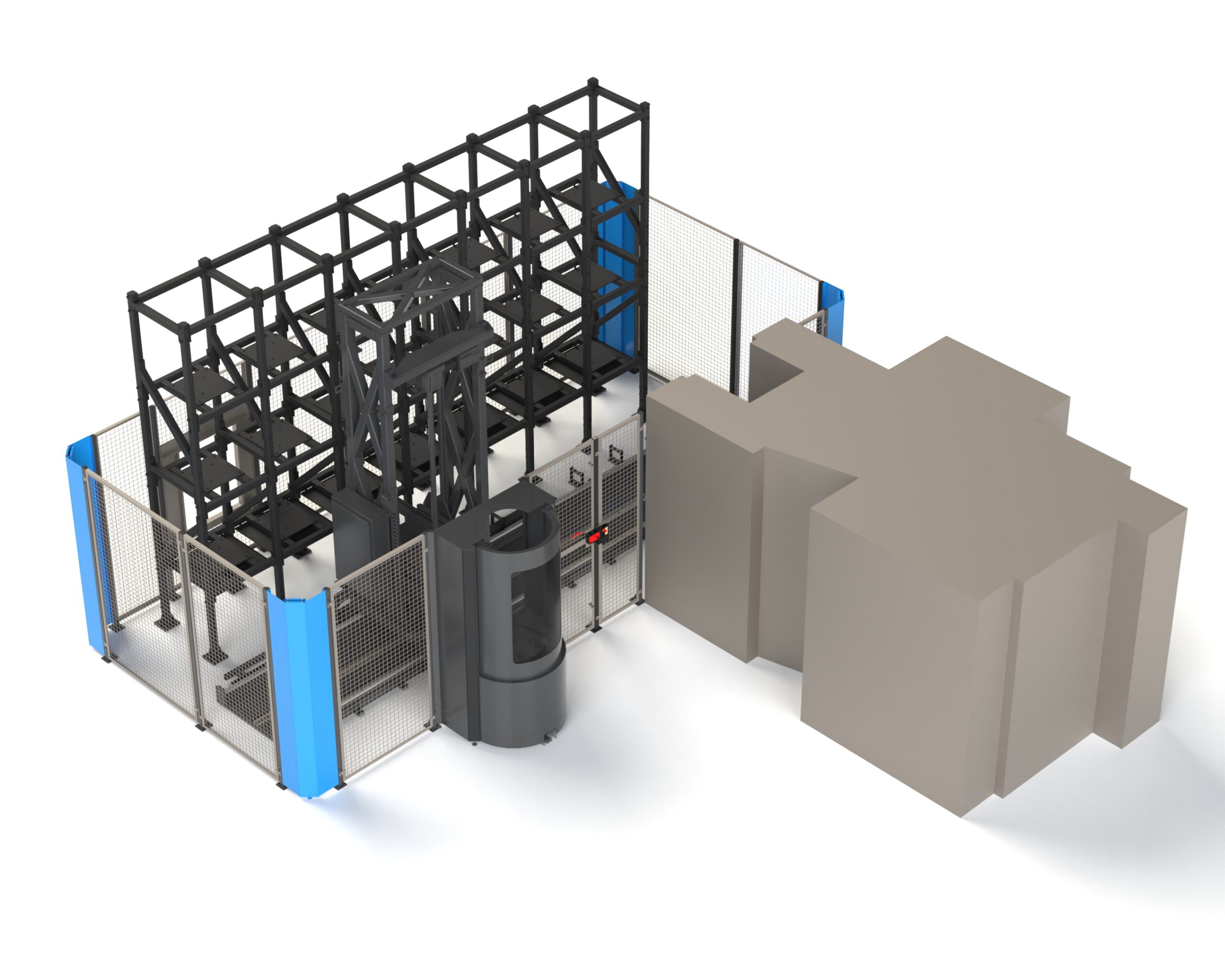

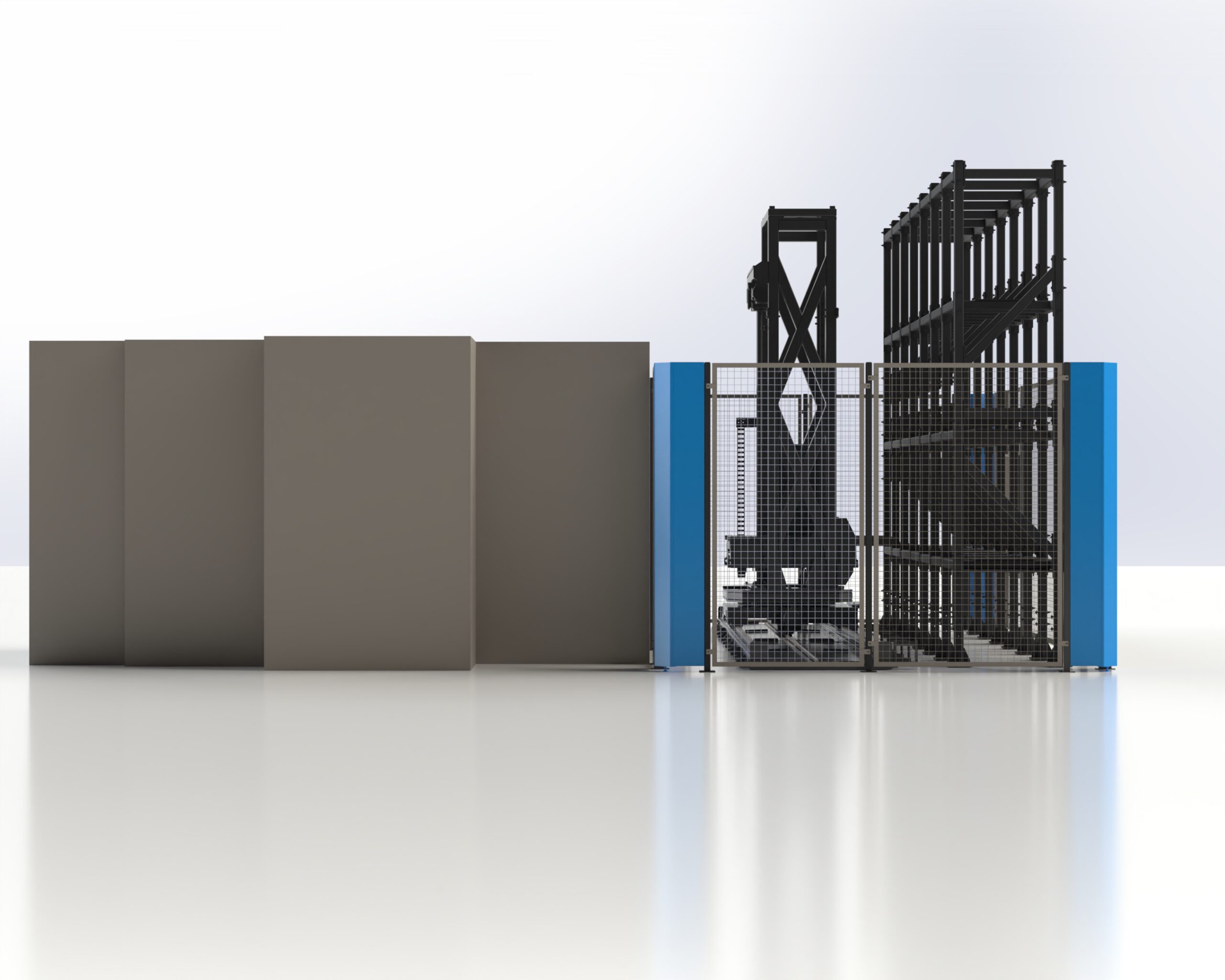

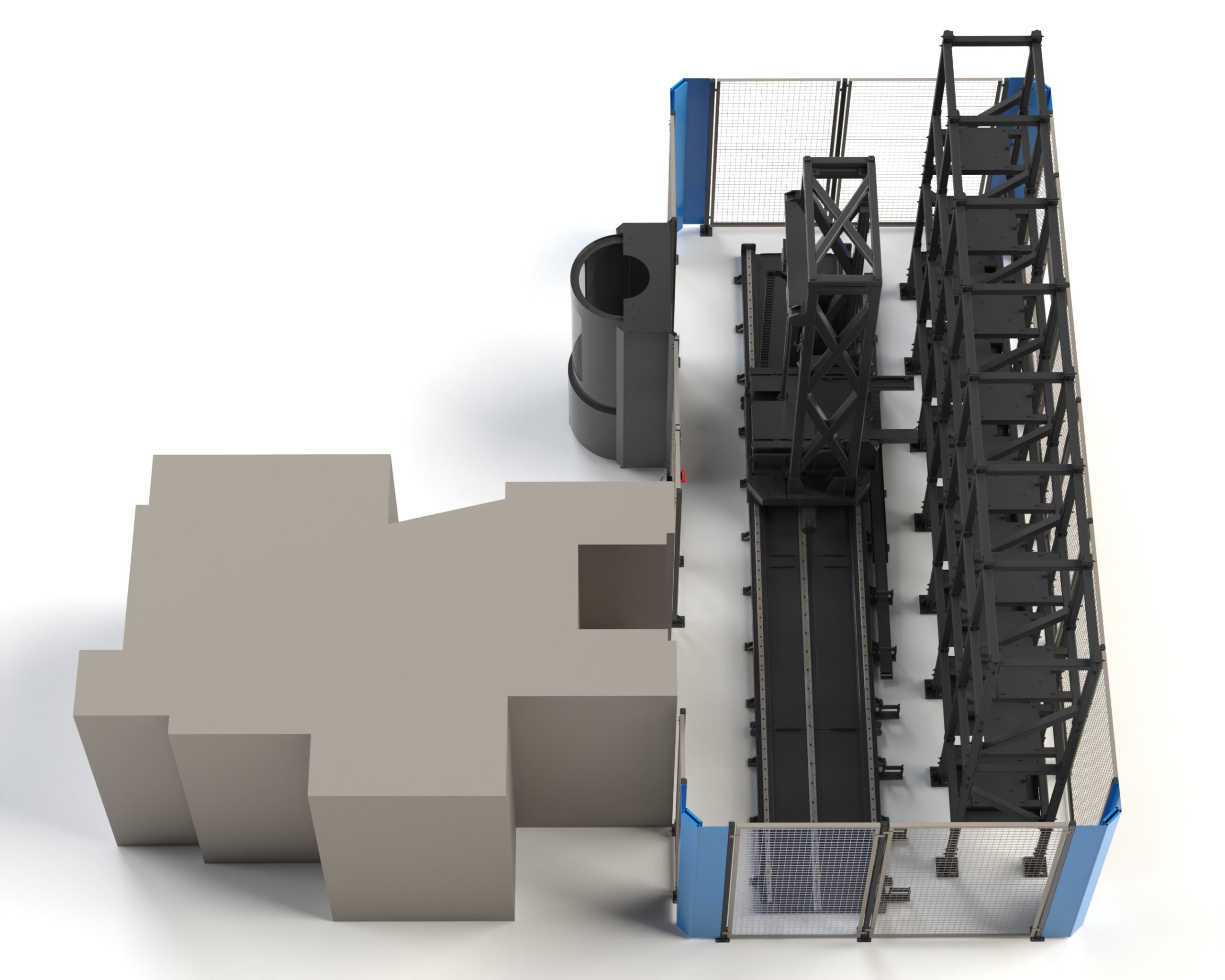

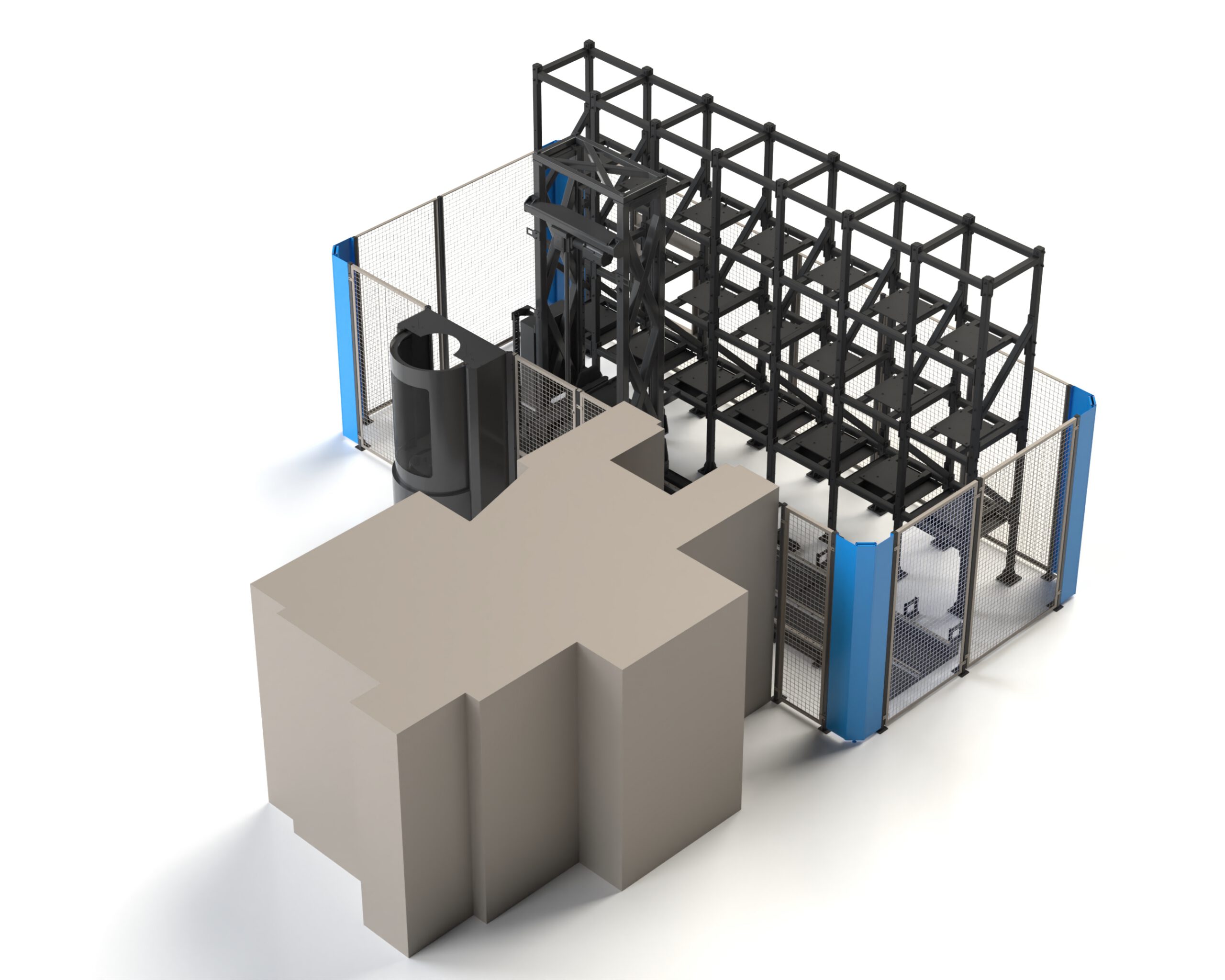

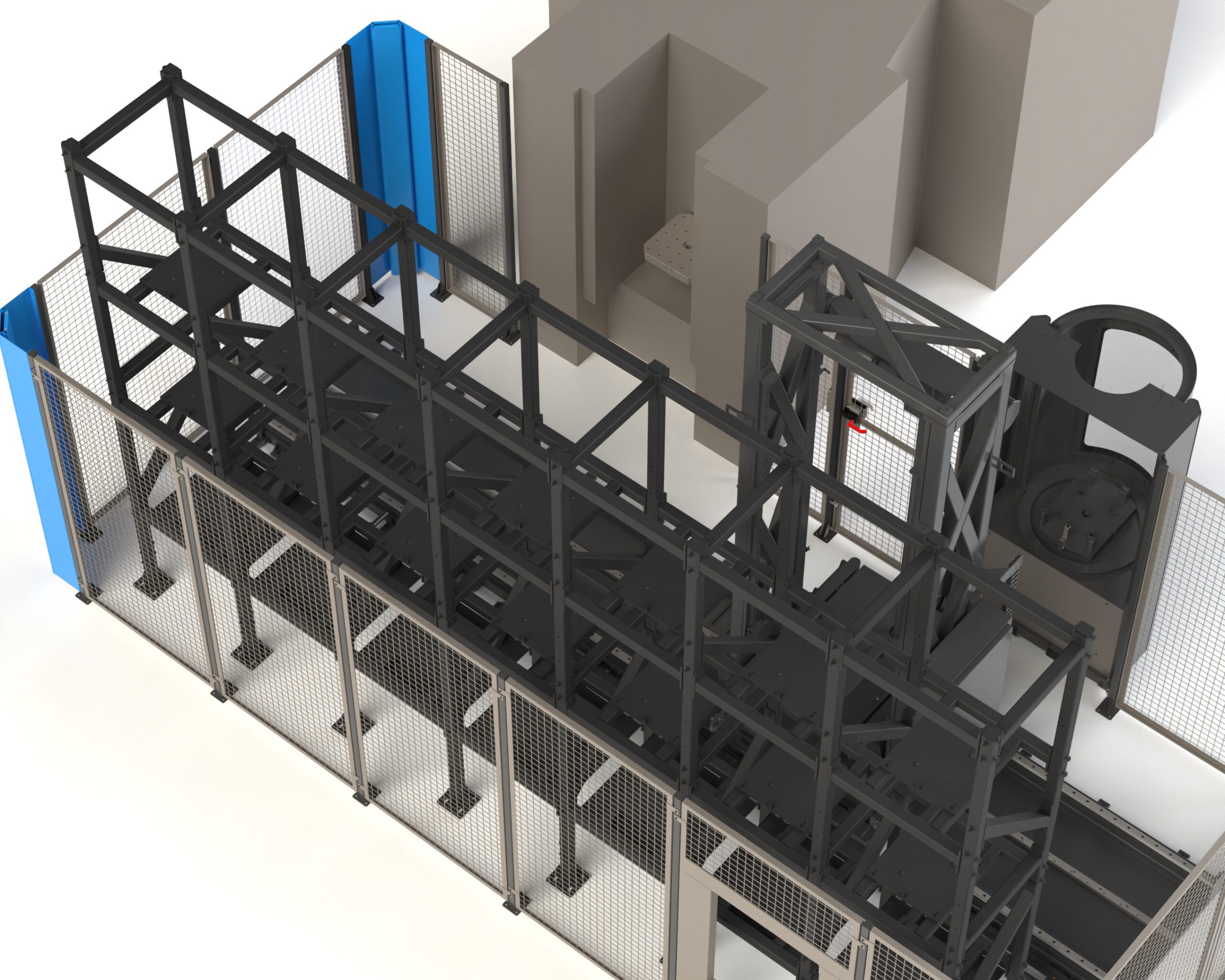

The MXi1000 is a linear pallet pool scaling from one CNC to as many as eight, with storage sized to your needs. Four-directional loading and a 1.2 m carrier-arm extension suit both high-volume and high-mix or low-volume work, handling parts up to 800mm diameter and 1,000 kg above the pallet.

Technical Data

Max payload (above pallet)	1,000 kg
Machines enslaved	1 to 8
Storage capacity	For customer's requirements
Pallet size	250-500 mm
Max part diameter	800 mm
Carrier arm extension	1.2 m
Dimensions (L × W × H)	8,556 L × 4,385 W mm (base machine)
Control software	Siemens Sinamics S210

Configurations vary based on pallet storage, shelving, system layout, and facility requirements.

Every Uni-Fab Automation pallet changer is powered by PalletOS — the intuitive software platform built to help operators control, manage, and scale automation with confidence.
